分离类设备

Nagamori provides efficient separation solutions for the chemical and process industries. Tailored to the material characteristics at different process stages, it offers complete sets of equipment and technologies covering gas-solid, liquid-solid, and liquid-liquid separation.

Product Inquiry

Download

Home Chemical Solutions Separation

Core Competencies
Customized Solutions
Types of Evaporation
Types of Evaporators
References
Contact
Download Brochure

Core Competencies

Low evaporation temperature and short heating time

Low pressure loss

High overall heat transfer coefficient and high evaporation efficiency

Suitable for processing heat-sensitive materials

Ideal for high-boiling and high-viscosity applications

The evaporator interior is resistant to fouling

Customized Solutions

Applicable Process Conditions

Evaporation, degassing, and distillation for heat-sensitive, high-viscosity, and particle-containing materials.
Types of Jackets

Internal media: Steam, thermal oil, hot water
Jacket types: Full jacket, half-pipe jacket heating
Scrapers selection

Fixed scraper, movable scraper, hinged scraper, flexible scraper, etc.

Types of Evaporation

	Evaporator (Vertical)	Evaporator (Horizontal)	Short-path Evaporator
Applications Industries	Pharmaceuticals, fine chemicals, food, natural product extraction	Petrochemicals, polymer polymerization, environmental protection (high-concentration waste liquid), chemical industry	Pharmaceutical intermediates, deep processing of natural products, biopharmaceuticals, flavors and fragrances, high-purity chemicals, functional oils and fats
Process Materials	Antibiotics, vitamins, flavors and fragrances, heat-sensitive solvent recovery	Epoxy resins, polyurethanes, rubber auxiliaries, high-viscosity polymers, waste oil recovery	Fish oil (EPA/DHA), vitamin E, monoglycerides, capsanthin, squalene, lecithin, high-purity fatty acids
Viscosity Range	Medium to high viscosity	Extremely high viscosity	Low to medium viscosity
Operating Vaccum	1 ~ 100 mbar	5 ~ 100 mbar	0.001 ~ 1 mbar
Residence Time	Very short (seconds to tens of seconds)	Relatively long (tens of seconds to minutes)	Minimum (a few seconds, with low heating intensity)

Types of Evaporators

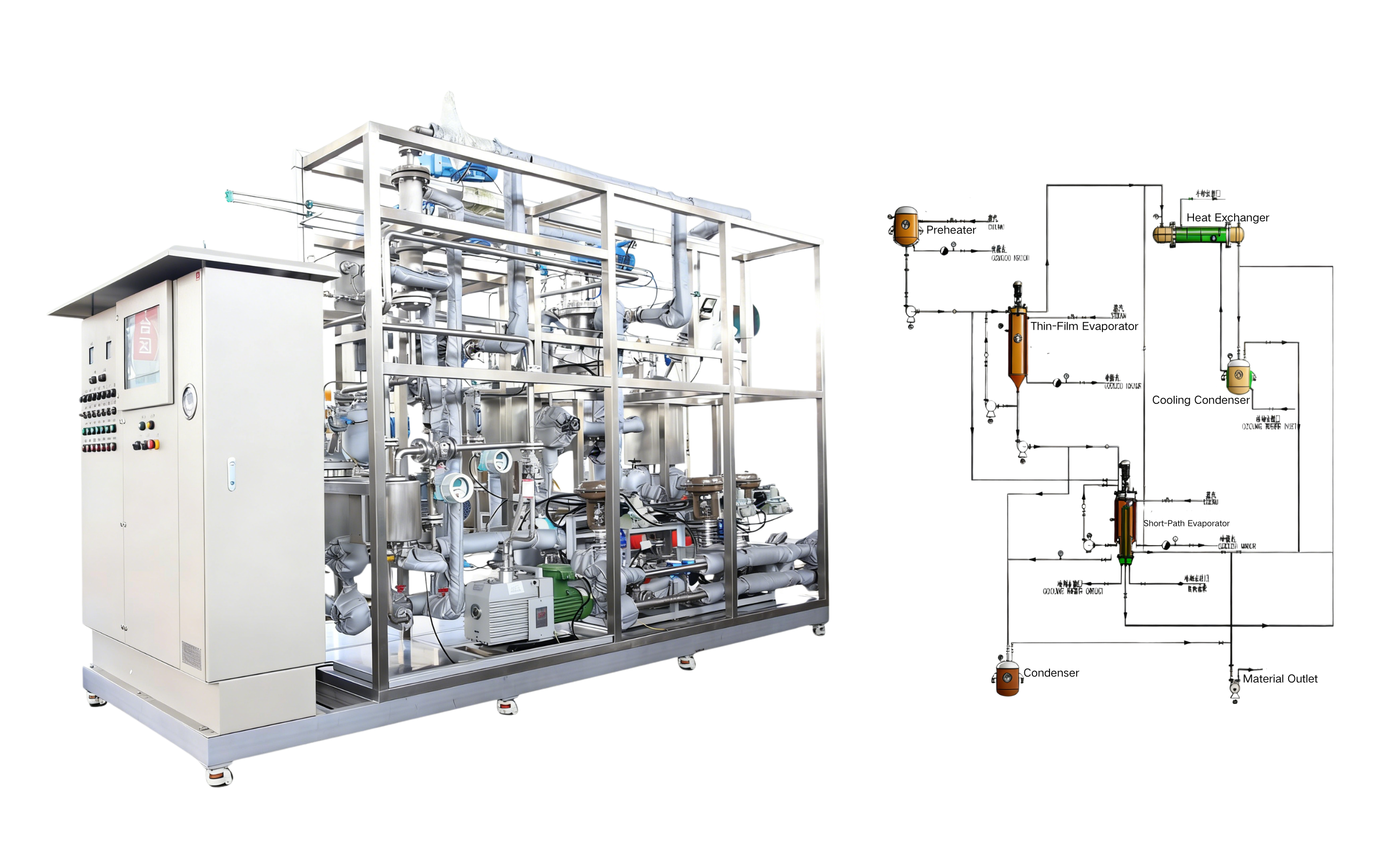

Evaporation pilot unit

Complete system: preheating tank, heat exchanger, evaporator tubes, motor, etc.

Integrated pilot unit for single-stage thin-film evaporation or two-stage evaporation with short-path evaporator.

1st stage: Preheated material enters the vacuum thin-film evaporator; low-boiling components evaporate, condense and are collected.

2nd stage: High-boiling concentrate is either collected directly or fed to a short-path evaporator. Medium-boiling components condense internally, separating from high-boiling residue.

Continuous operation supported by material transfer pumps.

Thin Film Evaporator (Vertical)

Suitable for various operating conditions including evaporation, solvent recovery, concentration, and desolventizing

Feed and distribution: The material enters through the top feed port and is thrown by a rotating liquid distributor, evenly spreading onto the inner wall of the cylinder.

Liquid film formation: Driven by the scraper agitation, a uniform liquid film is formed on the heated inner wall.

Evaporation and concentration: The liquid film absorbs heat from the jacket heating medium (steam, thermal oil, etc.), causing rapid evaporation of the solvent and concentration of the material.

Separation and recovery: The vaporized light components are condensed and liquefied in an external condenser, achieving separation.

Applicable materials: Suitable for the separation of heat-sensitive and high-boiling point products.

Short-Path Evaporator

Technical Adavantages

Built-in vertical multi-pass tube bundle condenser, located at the center of the evaporation cylinder;

Shortens the vapor path, allowing vapor molecules to condense directly and reducing backflow;

Enhances mass and heat transfer, achieving an operating pressure as low as 0.001 mbar.

Short-Path Distillation Pilot Unit

Thin-Film Evaporator (Horizontal)

Thin-Film Evaporator Laboratory Unit

实验装置

References

Pilot Unit (Middle Scale)

Thin-Film Evaporator Lab Unit with Vaccum System

Thin-film evaporator skid-mounted unit. Fully assembled at the Nagamori production workshop, including piping, instrumentation, and equipment;

In-plant operation and testing;

The modular design significantly reduces the workload required for assembly and startup, shortens construction time, and ensures the product quality of the evaporation module.

Thin-Film Evaporator

Application in Methyl Methacrylate

1. Extremely short material residence time. By optimizing the rotor and heating section, the material evaporates instantly and quickly leaves the high-temperature zone;

2. Excellent vacuum sealing performance, capable of maintaining a high vacuum level;

3. The scraper spreads the material into an extremely thin turbulent liquid film, enhancing heat transfer while preventing drying and fouling;

4. Full heat tracing of the piping, with temperature control slightly above the boiling point to prevent backflow and polymerization.

Short-Path Evaporator

Application in Polytetramethylene Ether Glycol

1. Single-section cylinder structure, reducing sealing surfaces and lowering leakage risk;

2. Helium vacuum leak testing to ensure extremely low leakage rates;

3. Equipped with a laser tracker to detect the straightness of the cylinder and rotor, meeting precision requirements;

4. ASPEN simulation capability, covering integrated design and delivery of short-path, vacuum system, utility system, and more.
